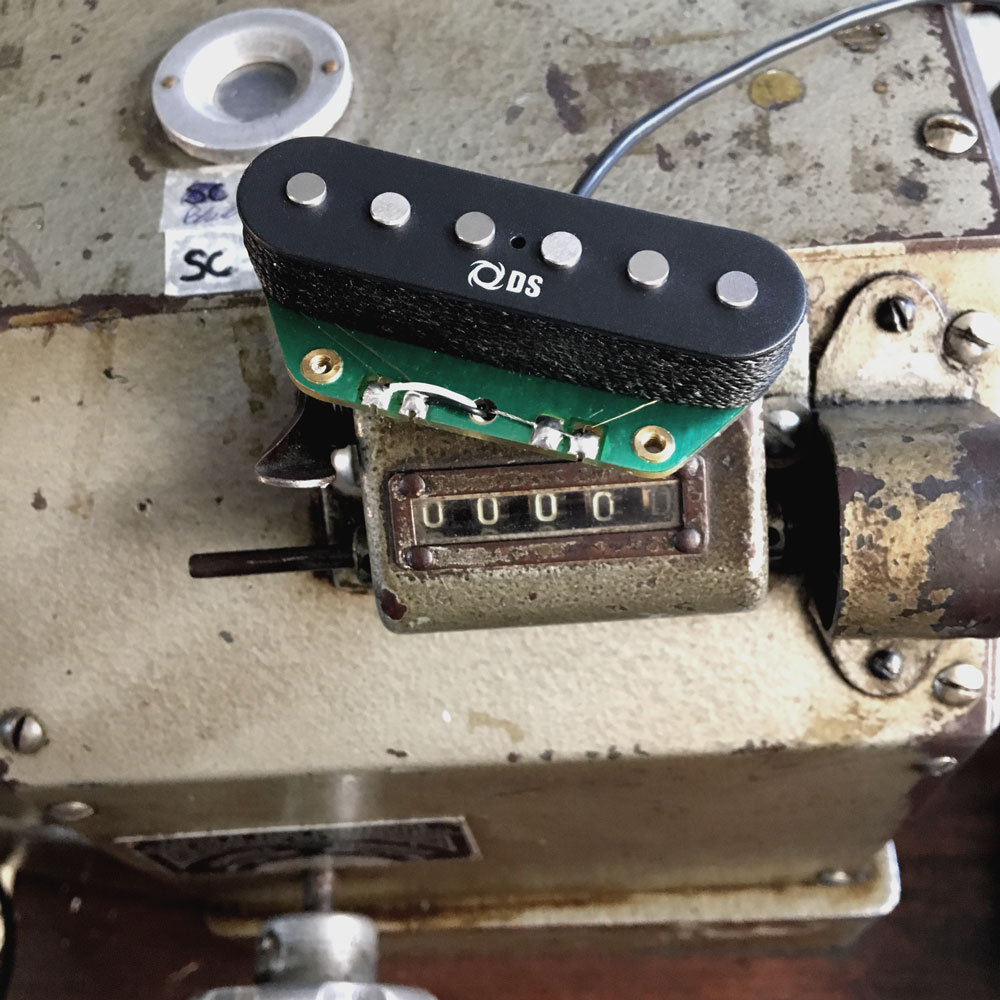

Tele ® Bridge II

DS22

Telecaster ® lead pickup with alnico 2 rod magnets to provide a softer treble attack for players who want Telecaster ® tone without excess bite. This single-coil model is tapped-wound for two levels of output and different tone responses that can be easily switched by a push-pull, push-push or on-on mini switch. Warm tone and twang in the tapped output with more aggressive attack in the full option, this pickup has an overall rounder sound making it well suited to brighter instruments.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate
  • DC RESISTANCE: 8K (tapped) y 12K (full)
  • MAGNETS: flat hand-beveled ALNICO 2 polepieces
  • RESONANCE PEAK: 2,38KHz (tapped) y 2KHz (full)
  • INDUCTANCE: 3,4 Henries (tapped) y 6,96 Henries (full)
  • HUM CANCELLING: No
5
Bass
6
Mid
7
Treble
  • CABLE: 2-conductor shielded
  • COLOR: black
  • BASE: shielded CEM1 with three 3 metric brass treads for lifetime guarantee.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment tubing and wiring diagram.
