Texas Fully
Pre-wired Pickguard

DS-P1 & DS-P2

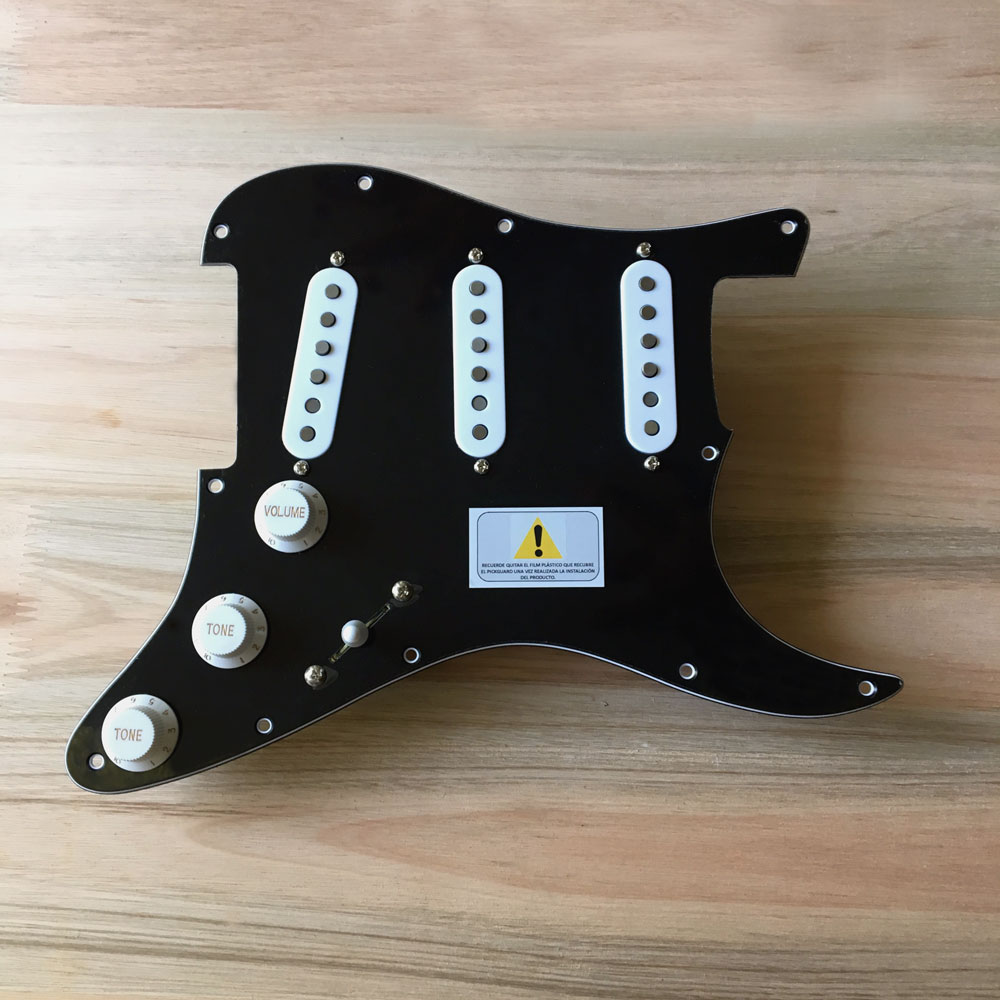

Blues Set X 3 staggered pickups pre-loaded into a pickguard ready to drop into your Stratocaster ® guitar. The sound has plenty of midrange chirp, crystal highs and tight bass. This single coil pickups feature an overwound single-coil construction that produces Texas-blues tone. Staggered hand-beveled polepieces balance output across every string and add more focus and enhanced dynamics. The middle pickup is RWRP, reverse wind reverse polarity, for noise cancellation in the in-between 2 and 4 positions.
Proudly made in Florida-BA, this pre-loaded pickguard is hand built in our workshop and guarantee by DS PICKUPS expertise.

  • Guitars: Recommended for all types of standard Stratocaster ® guitars.
  • Available models/product ID:

    White pre-loaded pickguard: DS-P1
    Black pre-loaded pickguard: DS-P2

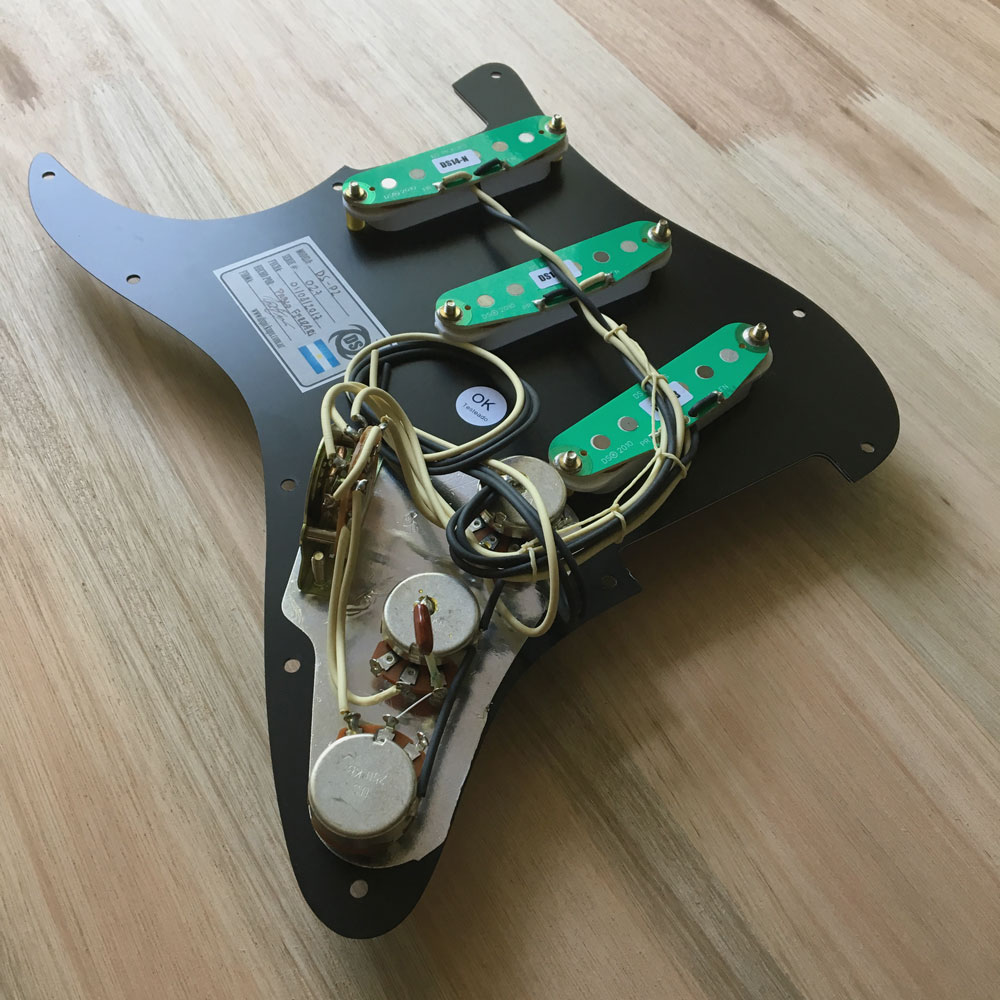

  • Specs: The pots, selector switch and cap, are all high quality products tested before and after the work is done. In this fully pre-wired you will find:
  • 11 screw hole USA pattern 3-ply black or white pickguard
  • 5-way oak grigsby blade switch
  • 1 volume 250K audio pot
  • 2 tone 250K linear pots
  • 1 high grade polyester .022uF cap
  • White knobs and white switch tip
  • White pickup covers
  • 3 plastic wire spring connectors for a non-solder installation
