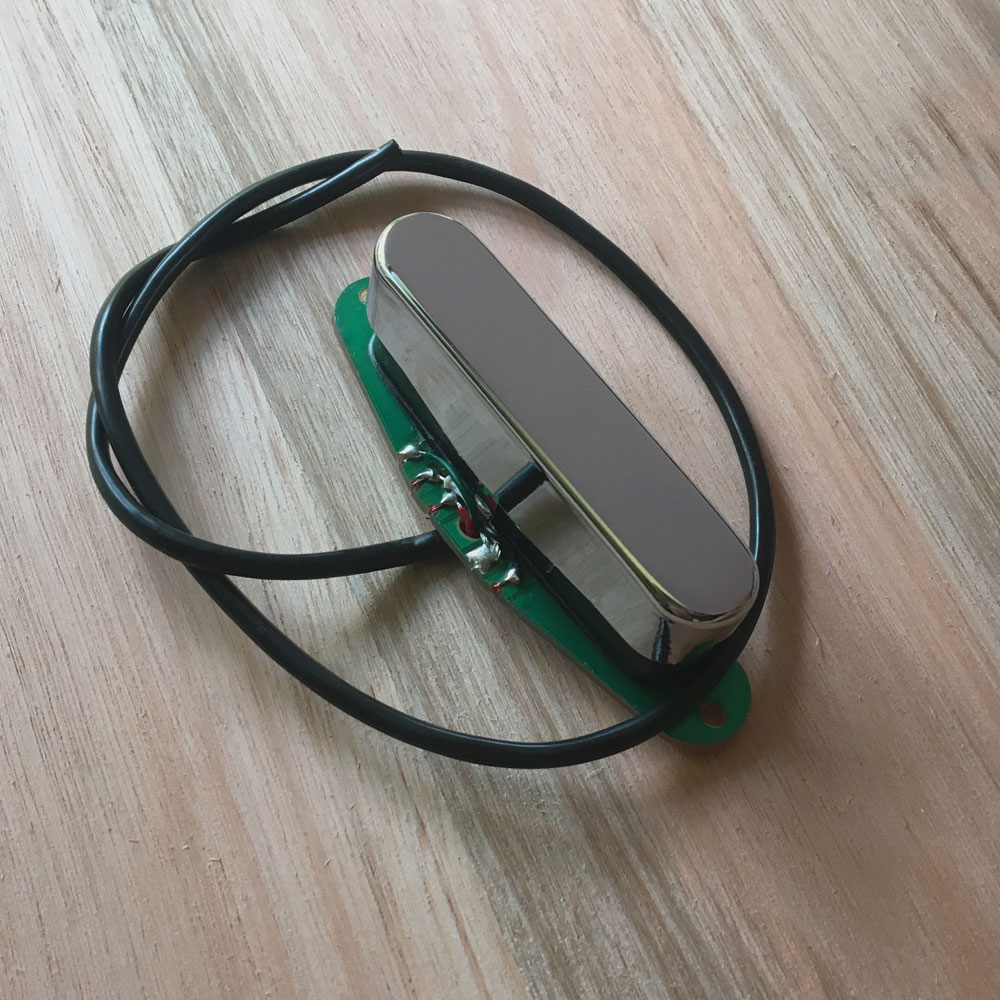

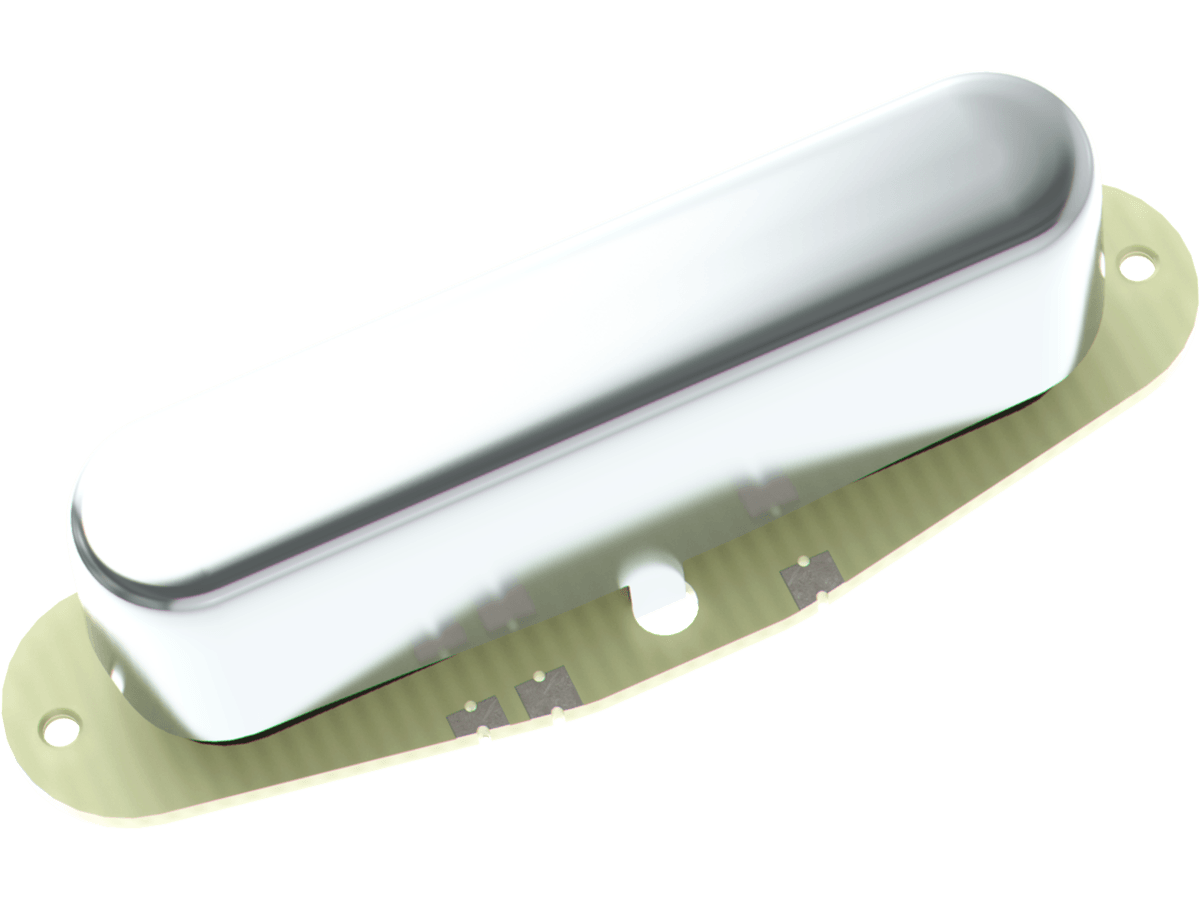

Tele ® Neck Stack V
DS52 / DS52-D
Telecaster ® rhythm stack pickup designed to deliver that classic, warm and vintage neck tone without the traditional single coil hum. Although this pickup is noiseless, it will look like an original single coil when being installed in your guitar. Comes with a 4-conductor shielded wire for multiple wiring options.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.
- OUTPUT: Moderate
- DC RESISTANCE: 16,5K
- MAGNET: ALNICO 5 pole pieces
- RESONANCE PEAK: 3,9KHz
- INDUCTANCE: 2,82 Henries
- HUM CANCELLING: Yes
- CABLE: 4-conductor shielded
- COVER: chrome plated brass cover and gold brass cover.
- BASE: CEM1 with 6/32” treads and through-hole screws for both types of Telecaster ® pickguards.
- INCLUDED COMPONENTS: 2 types of mounting screws, pickup height adjustment tubing and wiring diagram.
