SC2 Set X3

DS11-N-M-B

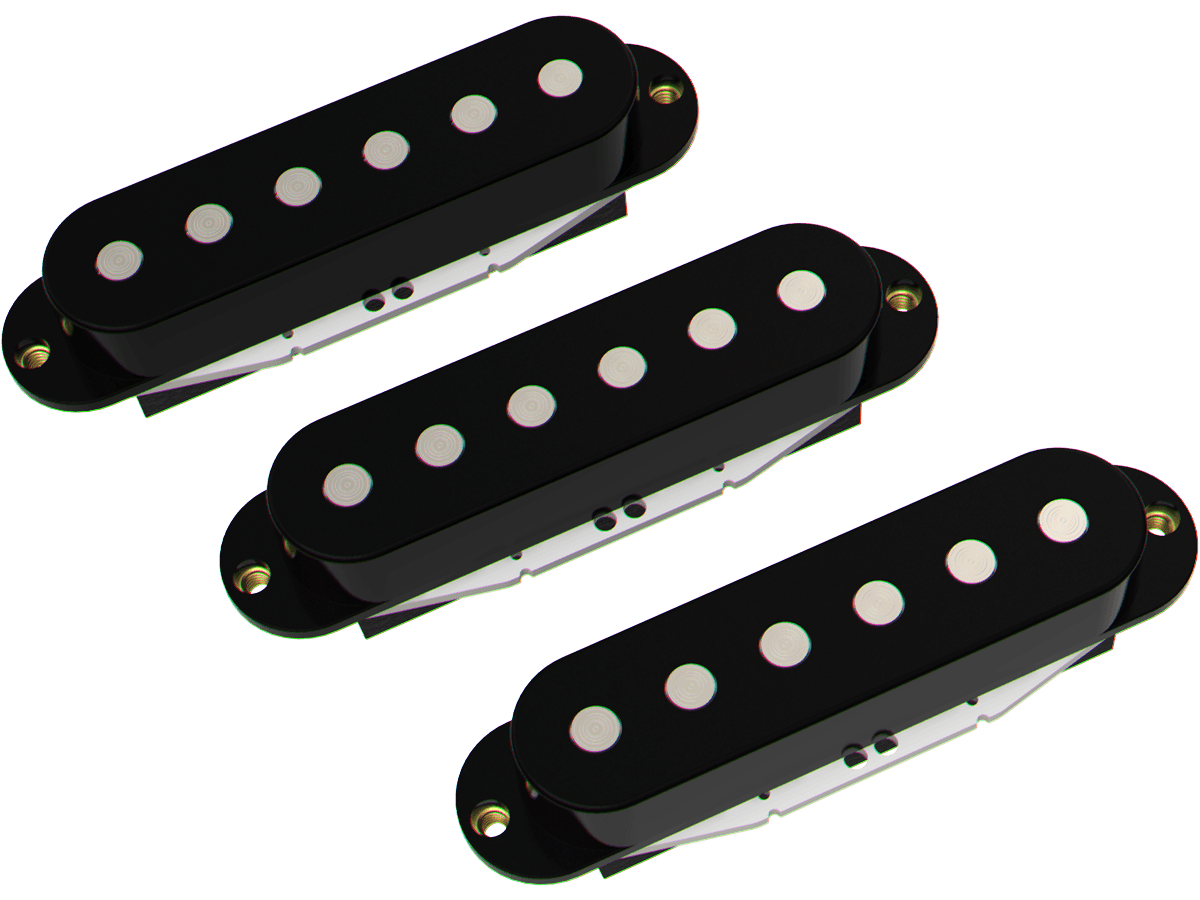

High output pickup that has enough power to compete with standard humbuckers. Recommended for those players looking for an aggressive single-coil sound with augmented low-mid range. The over wound coil and sharply focused magnetic field provide by two ceramic bars, impart extra punch with full and powerful chords and single notes that jump out with amazing attack. The middle pickup is RWRP, reverse wind reverse polarity, for noise cancellation in the in-between 2 and 4 positions.
‍Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate/High
  • DC RESISTANCE: 6.25K (neck-middle) y 7.1K (bridge)
  • MAGNET: 2 CERAMIC bars
  • RESONANCE PEAK: 3.2KHz (neck-middle) y 3KHz (bridge)
  • INDUCTANCE: 4.86 Henries (neck-middle) y 5.68 Henries (bridge)
  • HUM CANCELLING: No

DS11-N / DS11-M

5
Bass
6
Mid
7
Treble

DS11-B

5
Bass
7
Mid
6
Treble
  • CABLE: single conductor Santoprene®
  • PLASTIC COVER: white, black.
  • BASE: CEM1 with two 6/32” brass treads for lifetime guarantee.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment springs and wiring diagram.
