P-90 Hi Gain

DS72

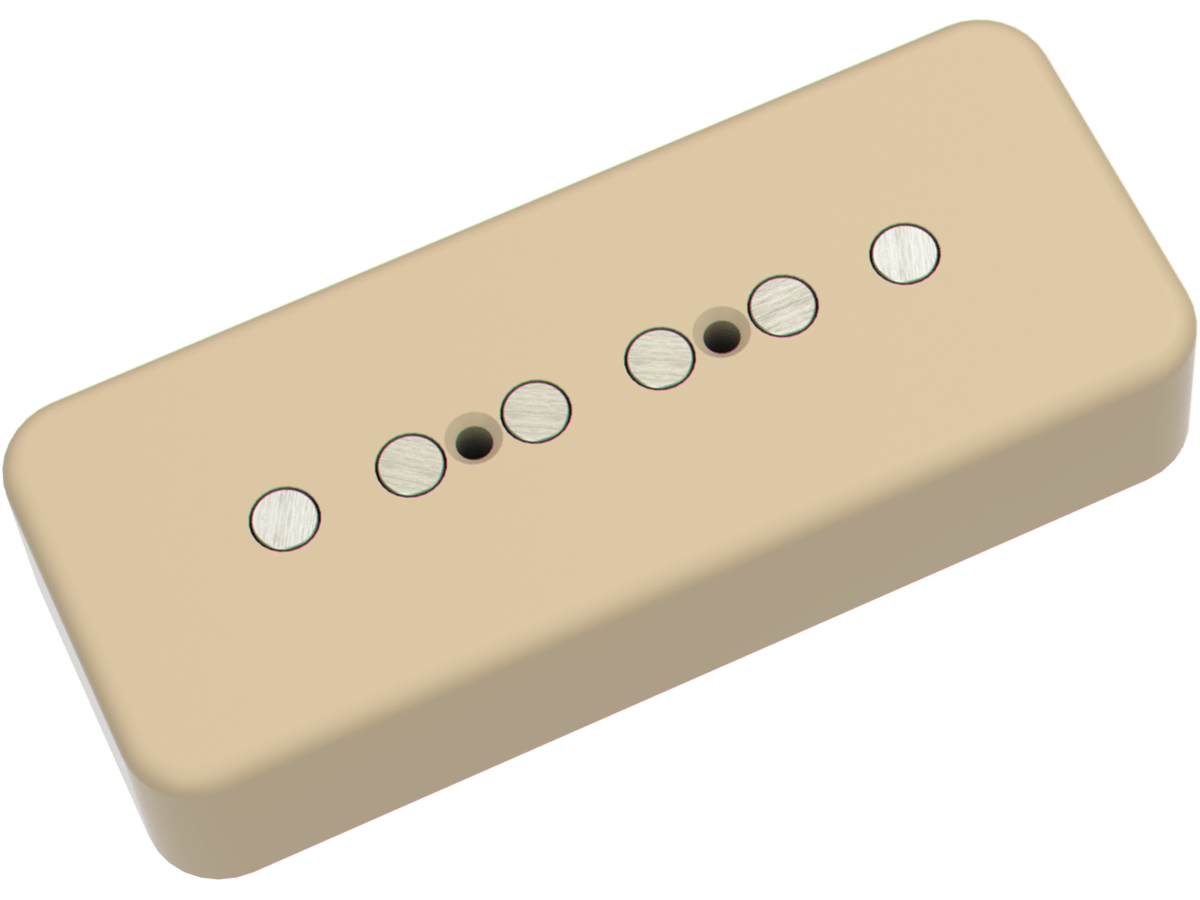

This hot rod soapbar pickup produces more upper mid-range clarity and enforced high sound definition that makes it really cut through the mix. Two strong ceramic magnets and six individual Alnico 2 hand-beveled polepieces, offer great sensitivity to subtle string movements and makes this pickups our most powerful P-90 pickup. This pickup is a drop-in replacement for any standard Gibson ® P-90 sized soapbar. Both neck and bridge models are RWRP, reverse wind reverse polarity, to each other for noise cancellation in the in-between position.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate/high
  • DC RESISTANCE: 12,4K (neck) and 14K (bridge)

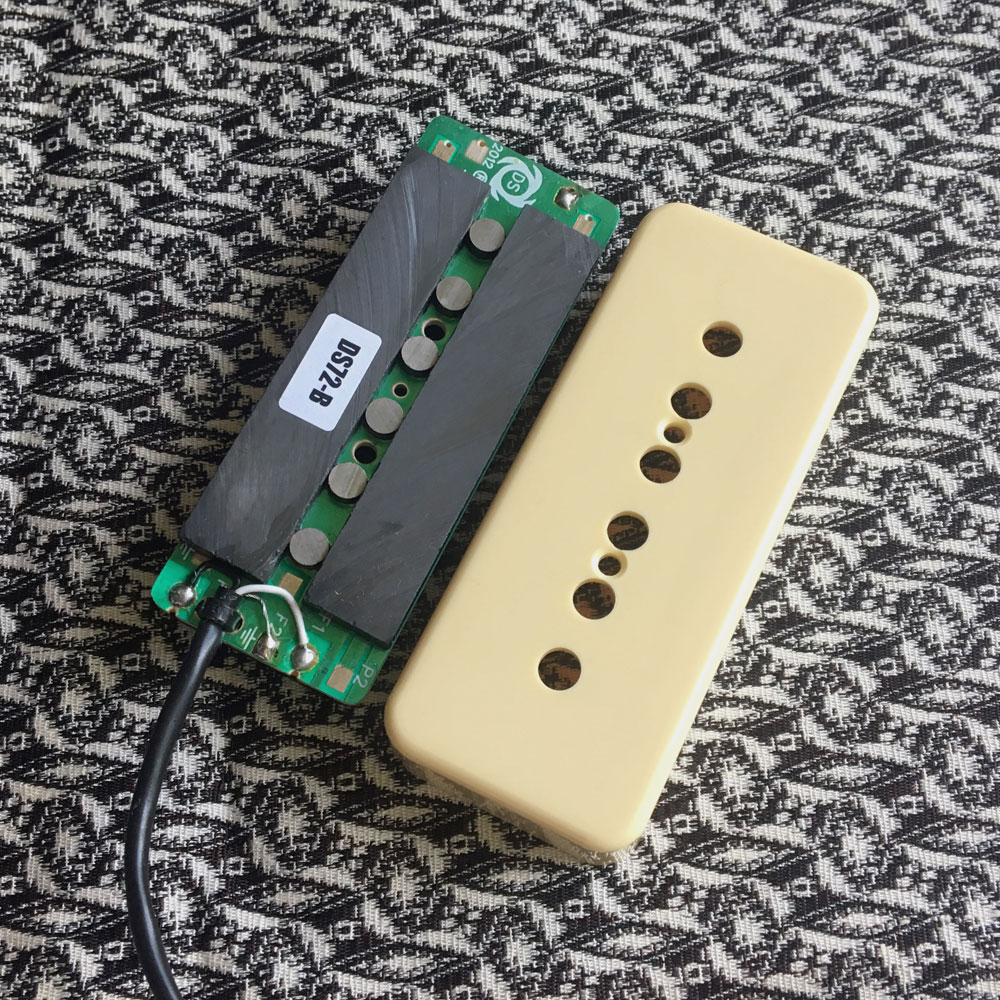

  • MAGNETS: six hand-beveled ALNICO 2 pole pieces + two CERAMIC BARS
  • RESONANCE PEAK: 2,38KHz (neck) and 2,23KHz (bridge)
  • INDUCTANCE: 5,2 Henries (neck) y 6,45 Henries (bridge)
  • HUM CANCELLING: No
6
Bass
8
Mid
8
Treble
  • CABLE: 2 conductor shielded
  • PLASTIC COVER: cream and black.
  • BASE: shielded CEM1
  • INCLUDED COMPONENTS: mounting screws, pickup height adjustment rubber and wiring diagram.
