P-90 V

DS71

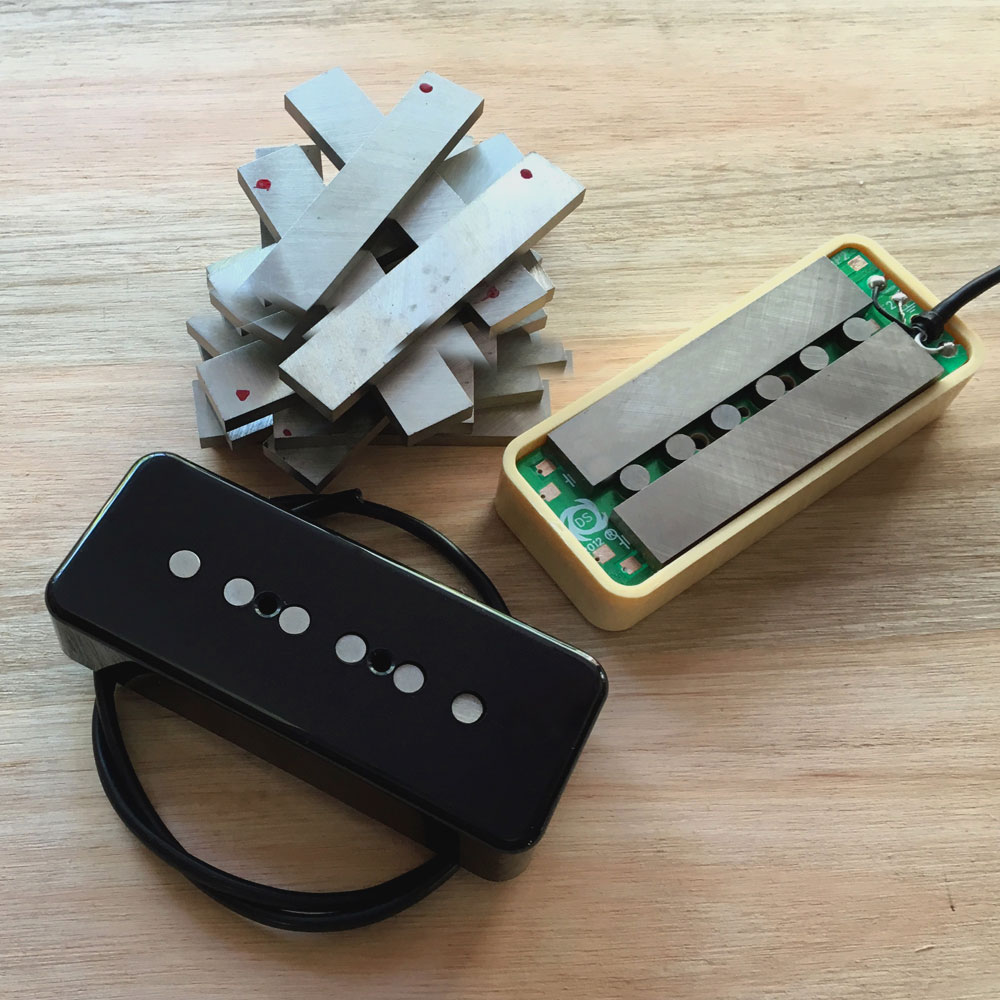

Soapbar P-90 with a more clear and sparkly tone than the P-90 II. The short, wide bobbins combine with our unique multi-ALNICO design of six individual Alnico 2 hand-beveled polepieces and two Alnico 5 bars all together in the same pickup, provide powerful twangy midrange tone and output. This pickup is a drop-in replacement for any standard Gibson ® P-90 sized soapbar. Both neck and bridge models are RWRP, reverse wind reverse polarity, to each other for noise cancellation in the in-between position.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate/high
  • DC RESISTANCE: 12,9K (neck) and 14K (bridge)
  • MAGNETS: six hand-beveled ALNICO 2 pole pieces + two ALNICO 5 BARS
  • RESONANCE PEAK: 2,3KHz (neck) and 2,15KHz (bridge)
  • INDUCTANCE: 5,62 Henries (neck) y 6,92 Henries (bridge)
  • HUM CANCELLING: No
7
Bass
8
Mid
7
Treble
  • CABLE: 2 conductor shielded
  • PLASTIC COVER: cream and black.
  • BASE: shielded CEM1
  • INCLUDED COMPONENTS: mounting screws, pickup height adjustment rubber and wiring diagram.
