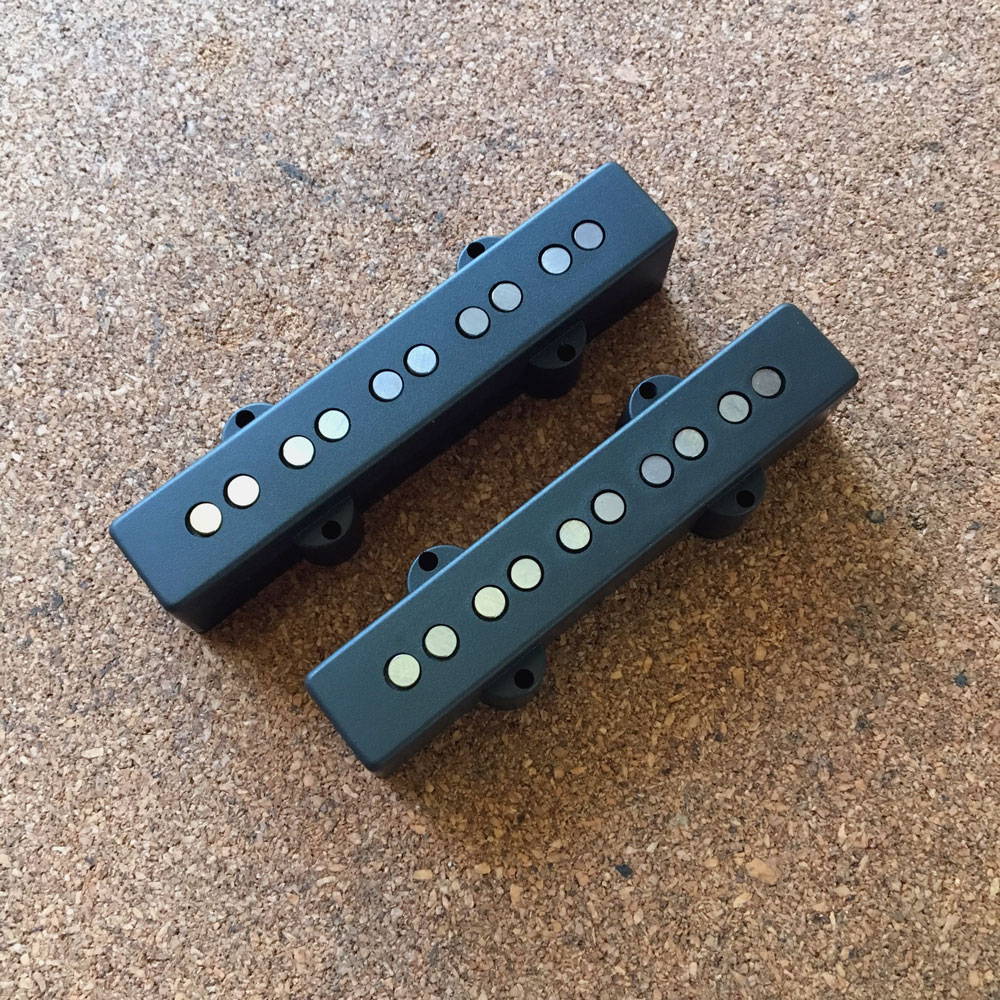

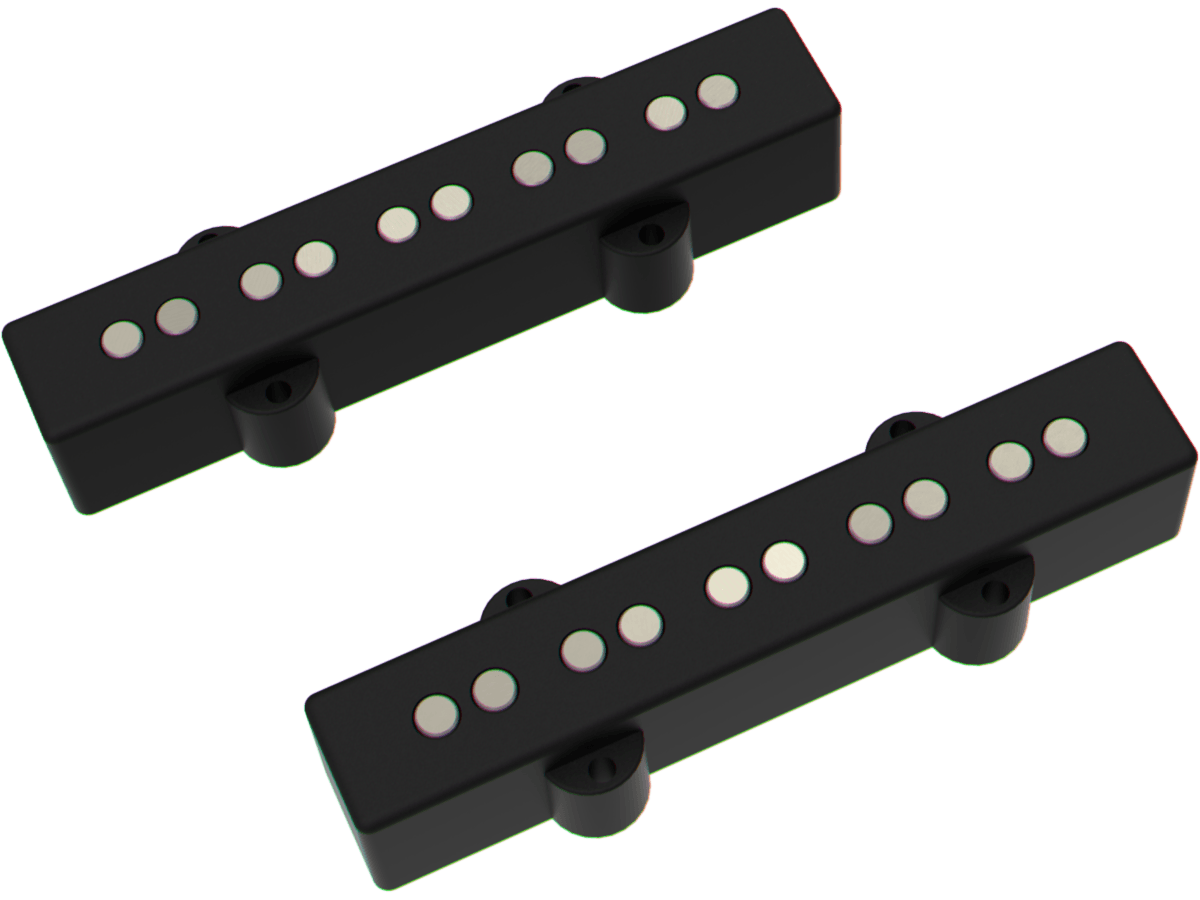

Jazz Bass ® Custom V Set
5-String

DS64

This model captures the classic tone with just the right amount of fullness, midrange and definition in the upper notes. The Alnico 5 polepieces and moderate windings bring out twangy, warmth and fullness to the instrument while maintaining clarity. Built with the right color and thickness of vulcanized fiber, the pickup comes with a vintage cover look and is a drop-in replacement for most American Standard Jazz Bass ® 5-string basses.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate
  • DC RESISTANCE: 7,7K (neck) and 8,3K (bridge)
  • MAGNET: hand-beveled ALNICO 5 pole pieces
  • RESONANCE PEAK: 3,62KHz (coils in parallel)
  • INDUCTANCE: 1,46 Henries (coils in parallel)
  • HUM CANCELLING: No
8
Bass
7
Mid
7
Treble
  • CABLE: Santoprene® single conductor
  • PLASTIC COVER: vintage-black
  • BASE: vulcanized fiber
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment rubber and manual instructions.
