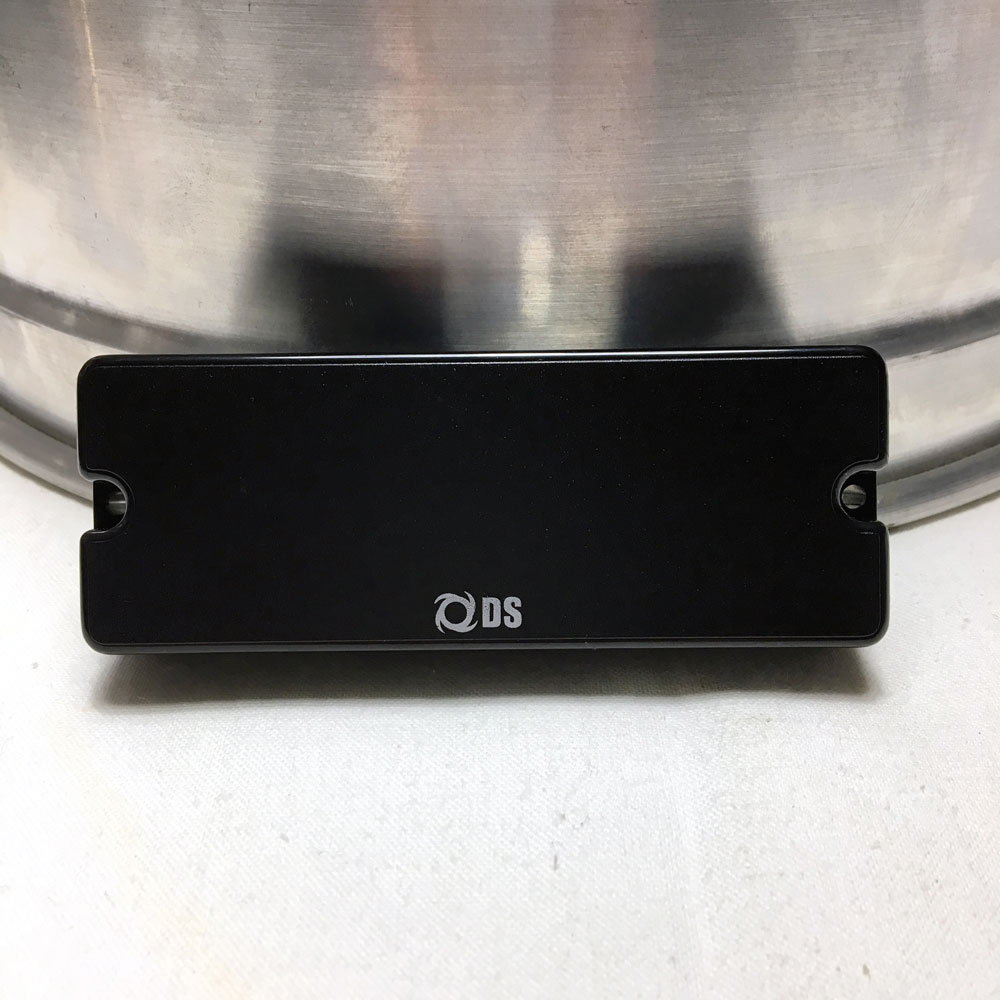

Cronos 8

DS100

The Cronos 8-string combines a large ALNICO 5 magnet with custom winding specs in a DC40 cover size. The neck pickup delivers a balance, versatile and responsive character from sweet warm sound  to raw rock ‘n' roll, providing focused mid-tones with great harmonics. The bridge version is a hot humbucker with full and powerful low end, focused upper-midrange that adds crunch to the amp and beautiful highs. Protect by a thin tape, the magnet wire is wound very close to the metallic slugs of each bobbin, providing extra sensitivity and sustain compare to any other humbucker pickup. Comes with a 4-conductor shielded wire for multiple wiring options.
Proudly made in Florida-BA, this pickup is hand built in our workshop, wax potted for squeal free operation and sealed in epoxy resin.

  • OUTPUT: Moderate-High (neck) and High (bridge)
  • DC RESISTANCE: 14,4K (neck) y 23K (bridge)
  • MAGNET: ALNICO 5 bar
  • RESONANCE PEAK: 2,36KHz (neck) y 1,68KHz (bridge)
  • INDUCTANCE: 6,8 Henries (neck) y 13,92 Henries (bridge)
  • HUM CANCELLING: Yes

DS100-N

7
Bass
8
Mid
7
Treble

DS100-B

9
Bass
8
Mid
6
Treble
  • CABLE: 4-conductor shielded
  • COVER: DC40 cover size
  • BASE: epoxy sealed with easy-connector system.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment rubber and manual instructions.
