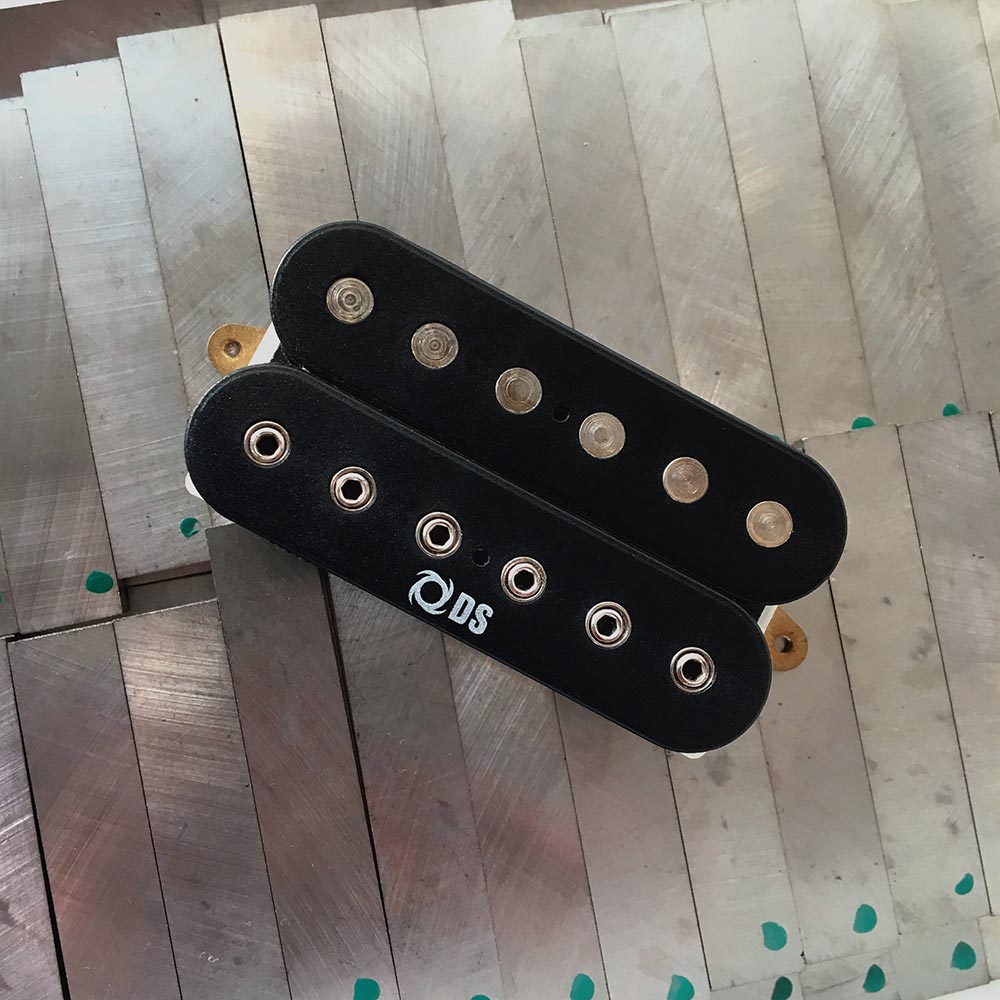

Heavy Custom II

DS38

High output, extra coil winding pickup which offers smooth highs, more midrange and a spongier bottom end tone. The Heavy Custom II has a fatter treble response than any other pickup and that gives solos a sweet character. Perfect for players who get their distortion from the amp rather than the pickup, this model adds great sustain to the guitar. Protect by a thin tape, the magnet wire is wound very close to the metallic slugs and metallic thread slugs of each bobbin, providing extra sensitivity and sustain compare to any other humbucker pickup. Comes with a 4-conductor shielded wire for multiple wiring options.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  •  OUTPUT: High
  • DC RESISTANCE: 17,9K (neck) y 18,7K (bridge)
  • MAGNET: ALNICO 2 bar
  • RESONANCE PEAK: 1,85KHz (neck) y 1,78KHz (bridge)
  • INDUCTANCE: 11,28 Henries (neck) y 13,5 Henries (bridge)
  • HUM CANCELLING: Yes
8
Bass
10
Mid
7
Treble
  • CABLE: 4-conductor shielded
  • COLORS: black, cream and zebra.
  • BASE: shielded CEM1 with easy-connector system.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment springs and wiring diagram.
