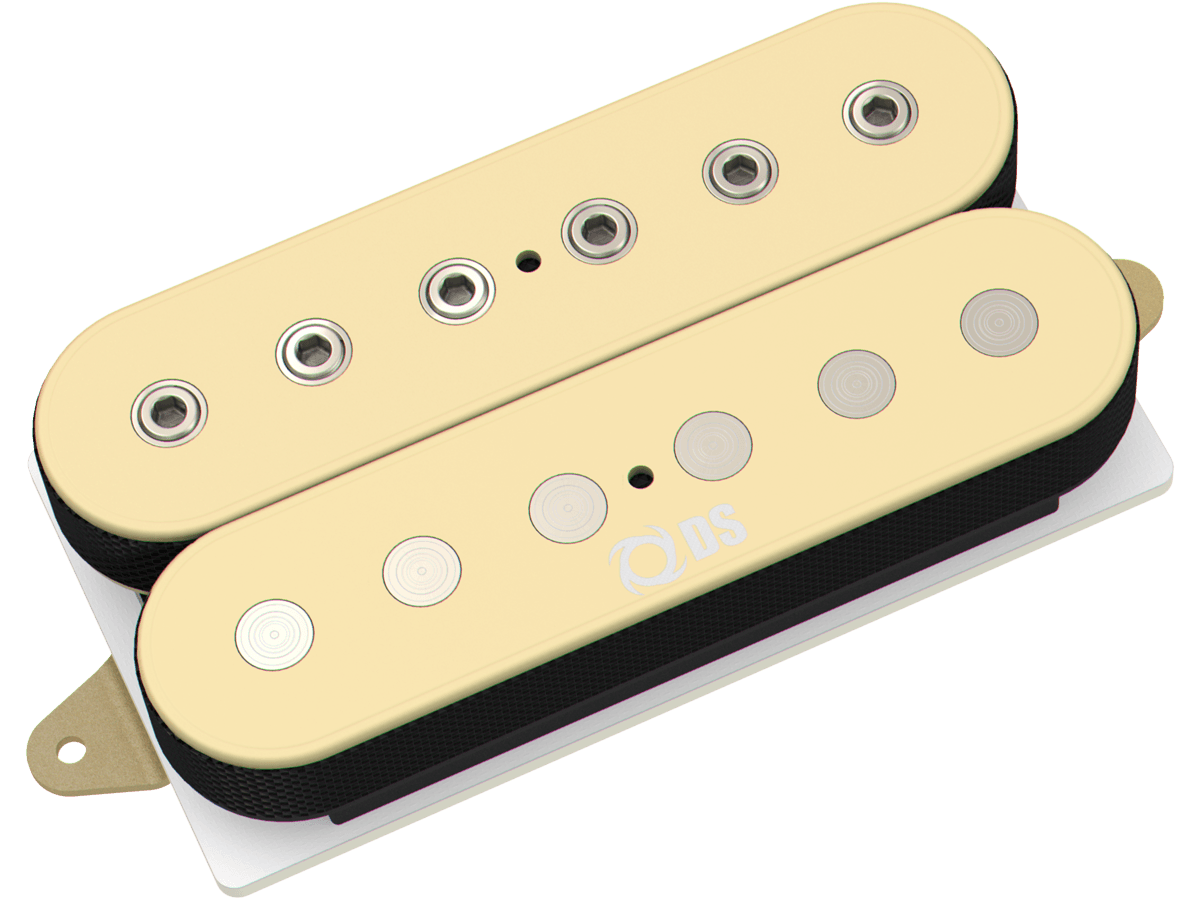

P-Classic

DS30

Inspired P.A.F sound in a ceramic format, the P-Classic has clean sounds with enhanced presence. This model got a great rhythm sound and a beautiful singing lead tone with more aggressive attack than vintage PAF humbuckers. Protect by a thin tape, the magnet wire is wound very close to the metallic slugs and metallic thread slugs of each bobbin, providing extra sensitivity and sustain compare to any other humbucker pickup. Comes with a 4-conductor shielded wire for multiple wiring options including coil-cut, which offers a single coil crystal tone.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate
  • DC RESISTANCE: 8K (neck) y 8,2K (bridge)
  • MAGNET: CERAMIC bar
  • RESONANCE PEAK: 2,9KHz (neck) y 2,75KHz (bridge)
  • INDUCTANCE: 4,6 Henries (neck) y 4,84 Henries (bridge)
  • HUM CANCELLING: Yes
5
Bass
6
Mid
8
Treble
  • CABLE: 4-conductor shielded
  • COLORS: black, cream and zebra.

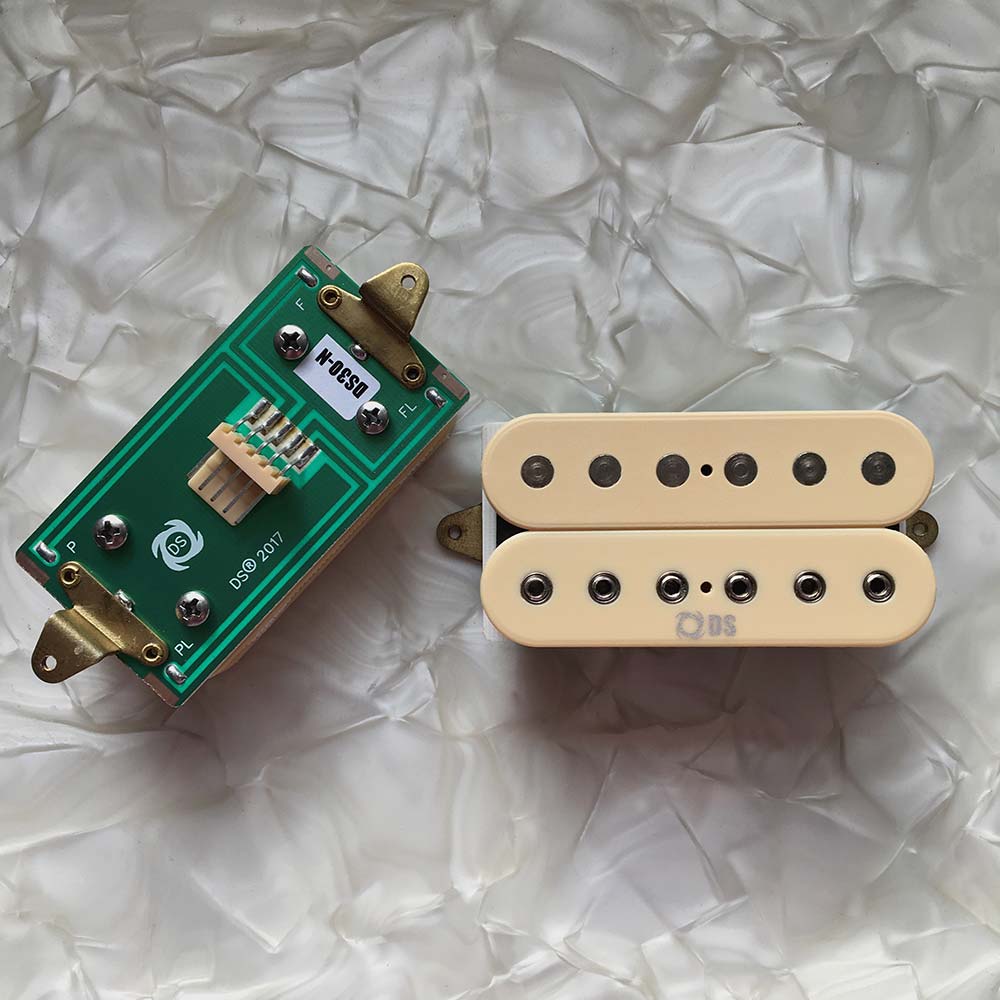

  • BASE: shielded CEM1 with easy-connector system.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment springs and wiring diagram.
