AR Jazz

DS39

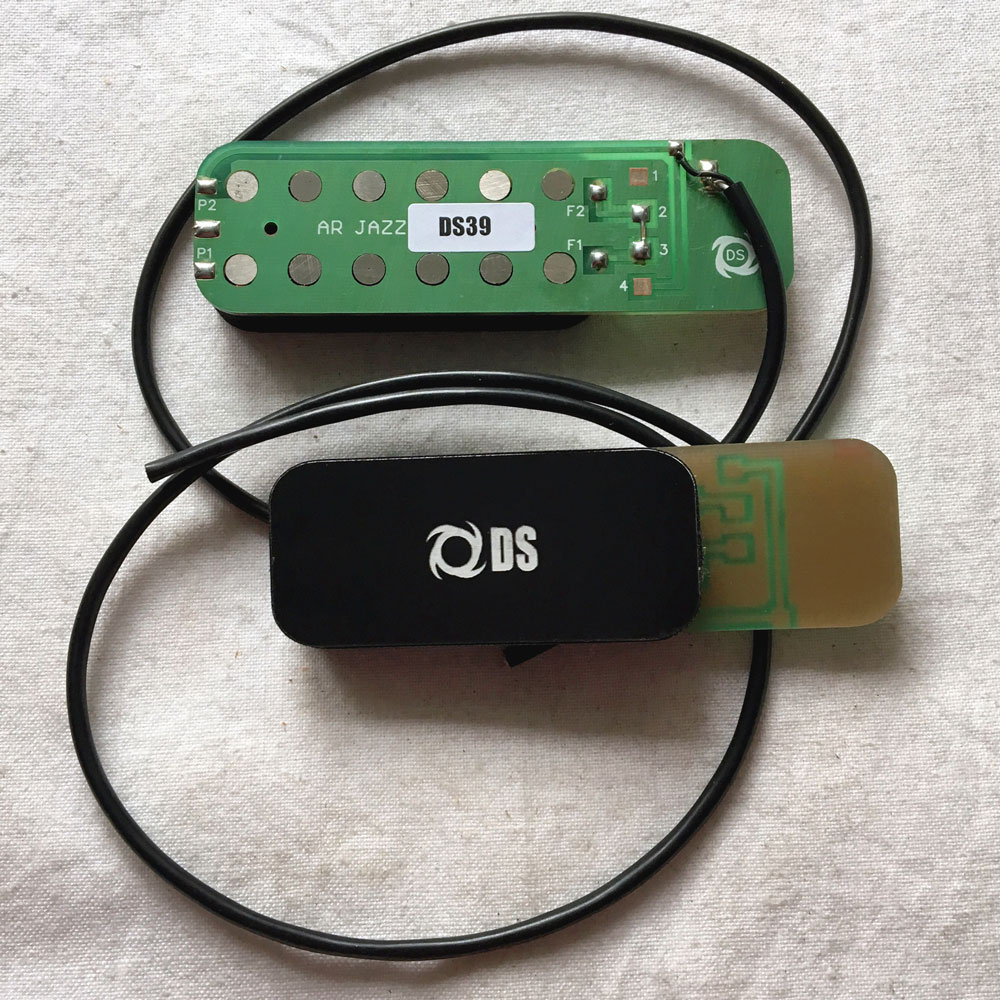

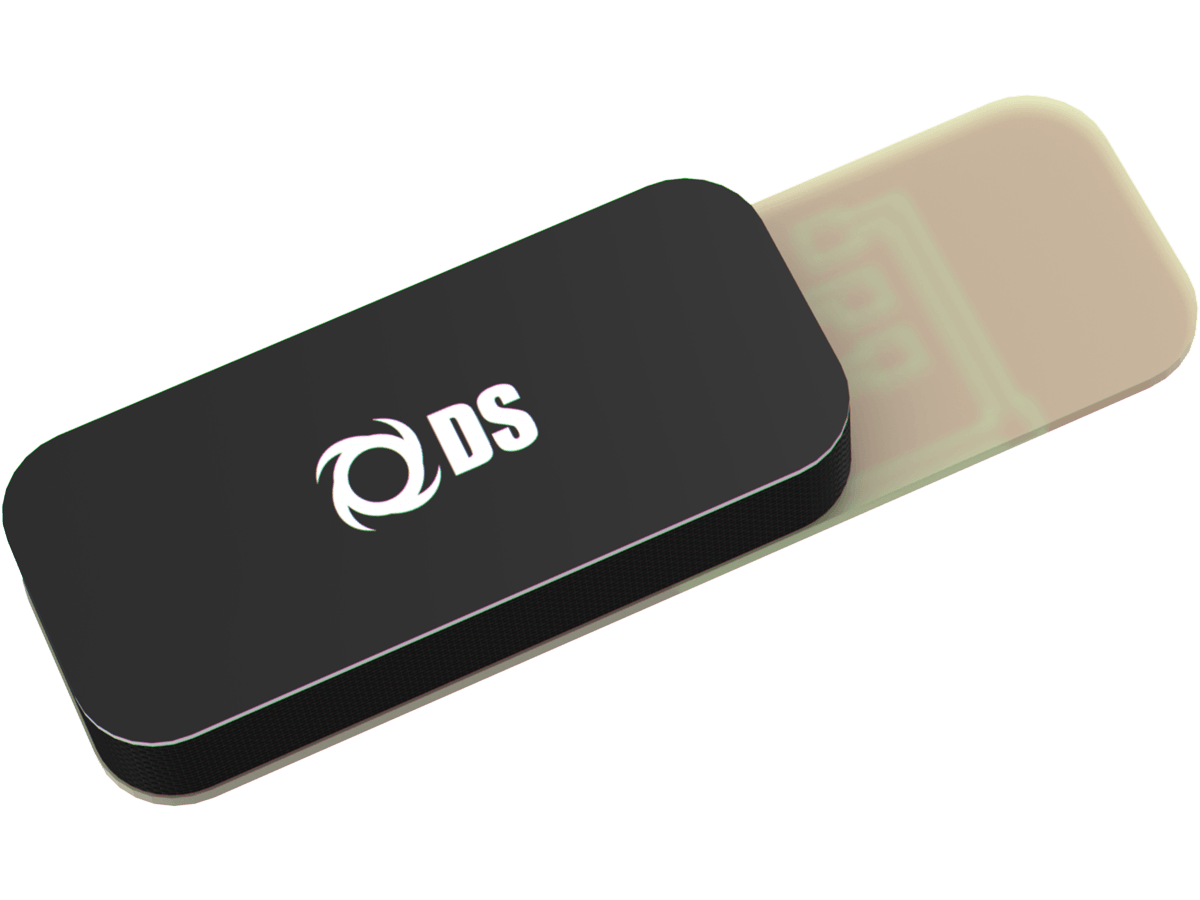

Floating humbucker pickup designed for the purist who plays a true acoustic archtop without a pickup routed in the guitar’s top. Naturally voiced, this pickup offers balance, warm and define tone with great sustain. The extended fiberglass base allows this model to be installed/glue underneath the pickguard. This pickup is dedicated to the memory of Axel Rudich, my great jazz teacher and friend.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate
  • DC RESISTANCE: 8,2K
  • MAGNETS: ALNICO 5 pole pieces
  • RESONANCE PEAK: 4.73 KHz
  • INDUCTANCE: 1,32 Henries
  • HUM CANCELLING: Yes
7
Bass
7
Mid
7
Treble
  • CABLE: 2 conductor shielded
  • PLASTIC COVER: black with logo.
  • BASE: shielded fiberglass with series-parallel connection option.
  • INCLUDED COMPONENTS: Wiring diagram.
