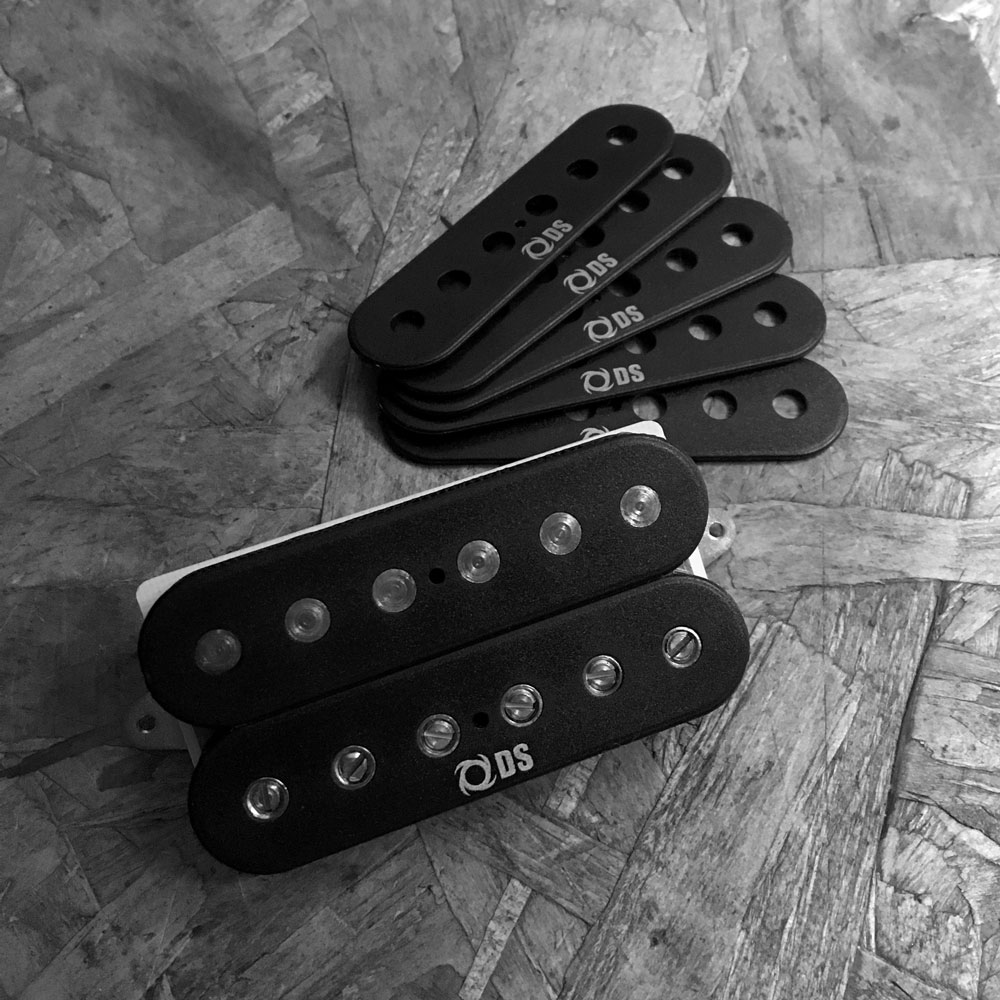

PRO II

DS37

Warm but hotter than vintage humbuckers, the PRO II offers raw, rebellious sound of Texas blues-rock. Perfect for players who get their distortion from the amp rather than the pickup, this models offers huge sustain. This humbucker cuts through de mix with stronger mids, but still has the open treble attack of the ALNICO 2 magnet. Protect by a thin tape, the magnet wire is wound very close to the metallic slugs and metallic thread slugs of each bobbin, providing extra sensitivity and sustain compare to any other humbucker pickup. Comes with a 4-conductor shielded wire for multiple wiring options.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate/high
  • DC RESISTANCE: 9,6K (neck) y 9,9K (bridge)
  • MAGNET: ALNICO 2 bar
  • RESONANCE PEAK: 2,76KHz (neck) y 2,65KHz (bridge)
  • INDUCTANCE: 5,49 Henries (neck) y 5,76 Henries (bridge)
  • HUM CANCELLING: Yes
7
Bass
8
Mid
6
Treble
  • CABLE: 4-conductor shielded
  • COLORS: black, cream and zebra.
  • BASE: shielded CEM1 with easy-connector system.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment springs and wiring diagram.
