Impact Distortion

DS32

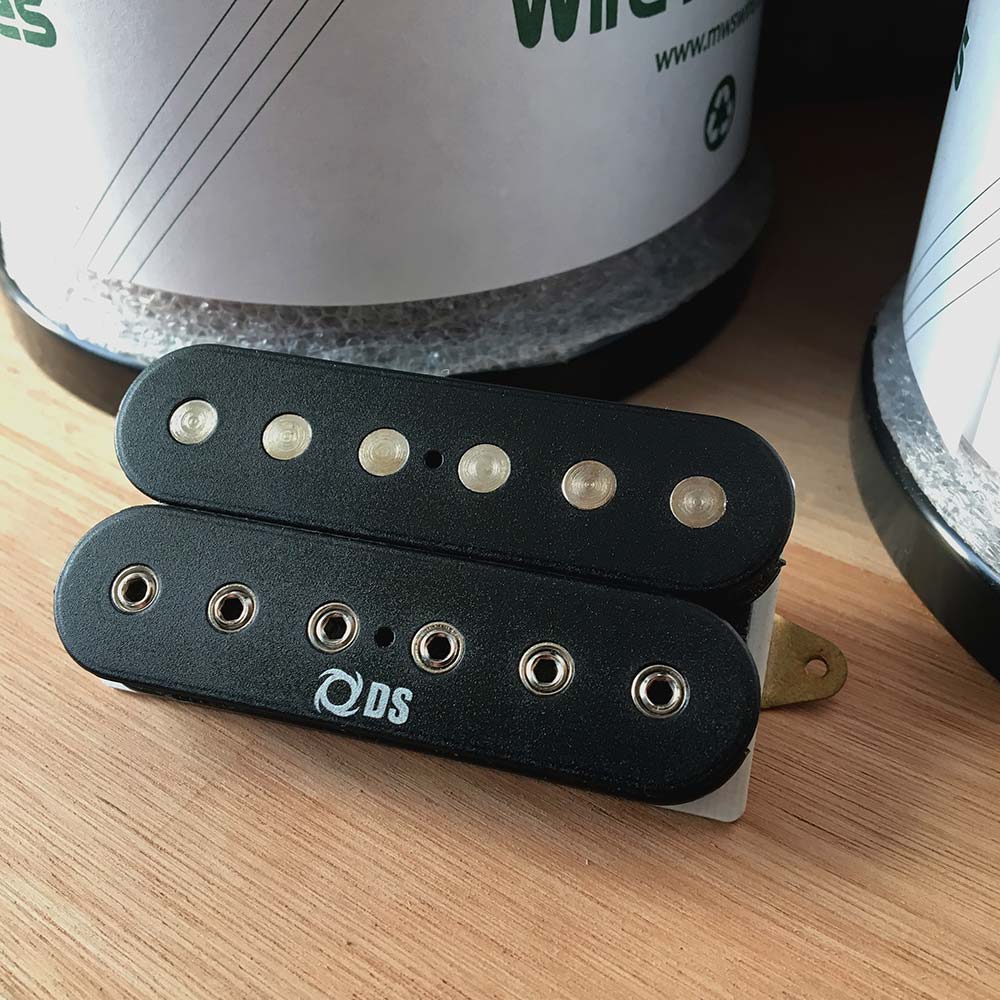

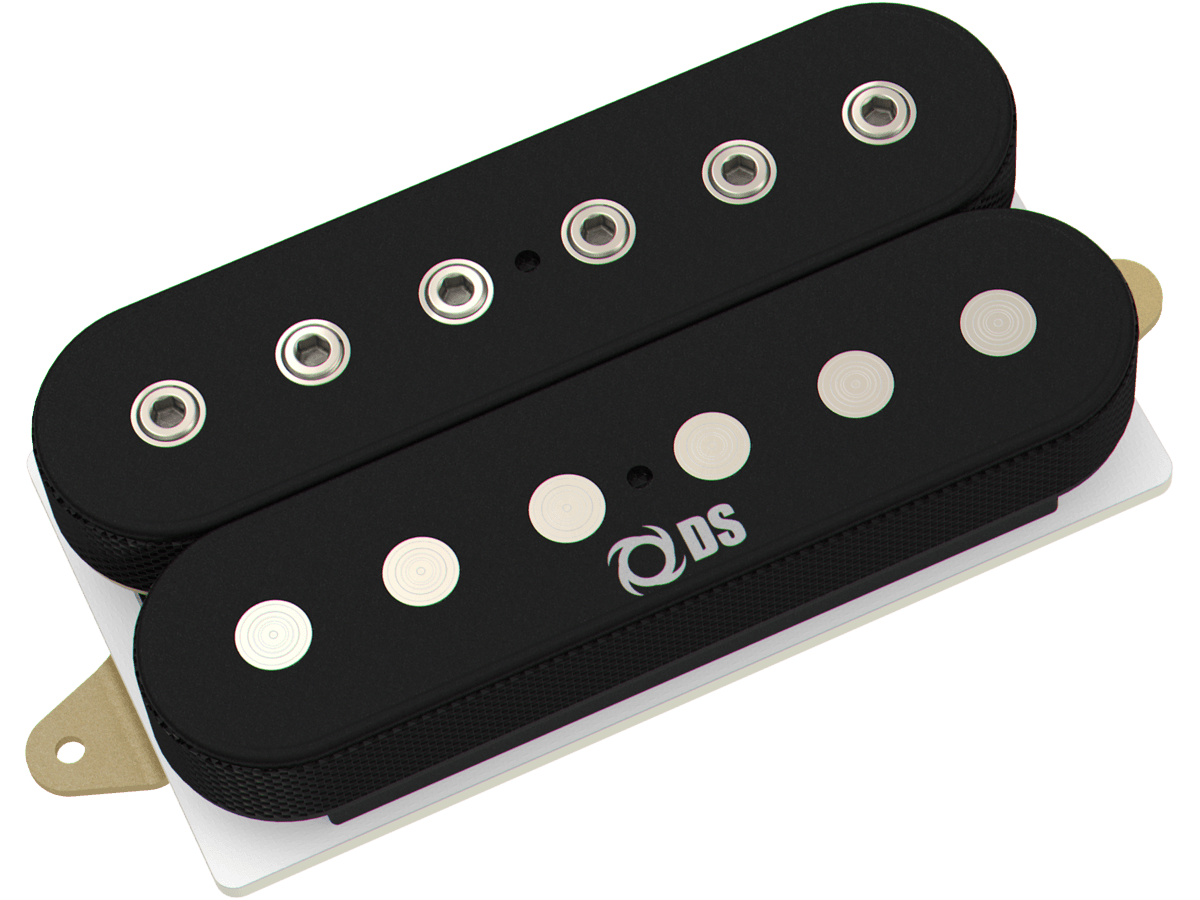

This model is our original high output ceramic humbucker. We use a massive ceramic magnet and over wound coils to deliver raw, full-bodied rock and heavy tones with powerful upper mids for extra cut through the mix. It’s great for hard-hitting and crunch and the lead tones scream with great harmonics. It also remains tight for low tuning performances. Protect by a thin tape, the magnet wire is wound very close to the metallic slugs and metallic thread slugs of each bobbin, providing extra sensitivity and sustain compare to any other humbucker pickup. Comes with a 4-conductor shielded wire for multiple wiring options including coil-cut.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: High
  • DC RESISTANCE: 19,7K (neck) and 20,75K (bridge)
  • MAGNET: CERAMIC bar
  • RESONANCE PEAK: 1,9KHz (neck) y 1,88KHz (bridge)
  • INDUCTANCE: 10,23 Henries (neck) y 10,92 Henries (bridge)
  • HUM CANCELLING: Yes
8
Bass
7
Mid
5
Treble
  • CABLE: 4-conductor shielded
  • COLORS: black, cream and zebra.
  • BASE: shielded CEM1 with easy-connector system.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment springs and wiring diagram.
